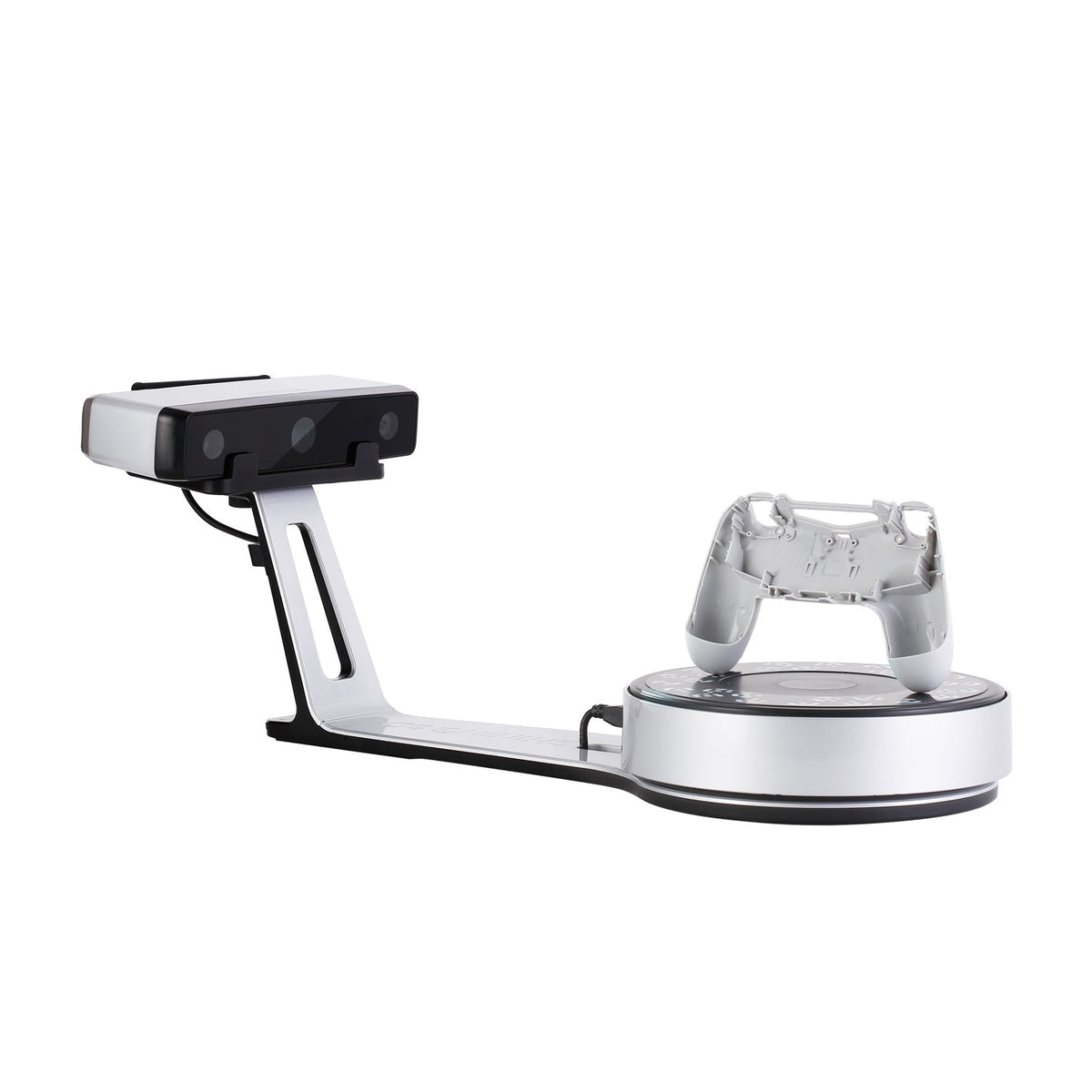

Desktop 3D Scanner EinScan SP V2 with 0.002 in Accuracy

The EinScan SP V2 is a desktop 3D scanner for product design, prototyping, reverse engineering, 3D modeling, and digital capture. It combines up to 0.002 in scanning accuracy with fast single-scan capture, automated turntable scanning, fixed scanning for larger objects, and color texture capture.

Multiple alignment methods and EXScan S software provide tools for processing scanned data and exporting it for 3D modeling and printing workflows.

Key Benefits

• Capture detailed 3D data with accuracy up to 0.002 in
• Complete individual scans in less than one second
• Automate 360° scanning with the included turntable

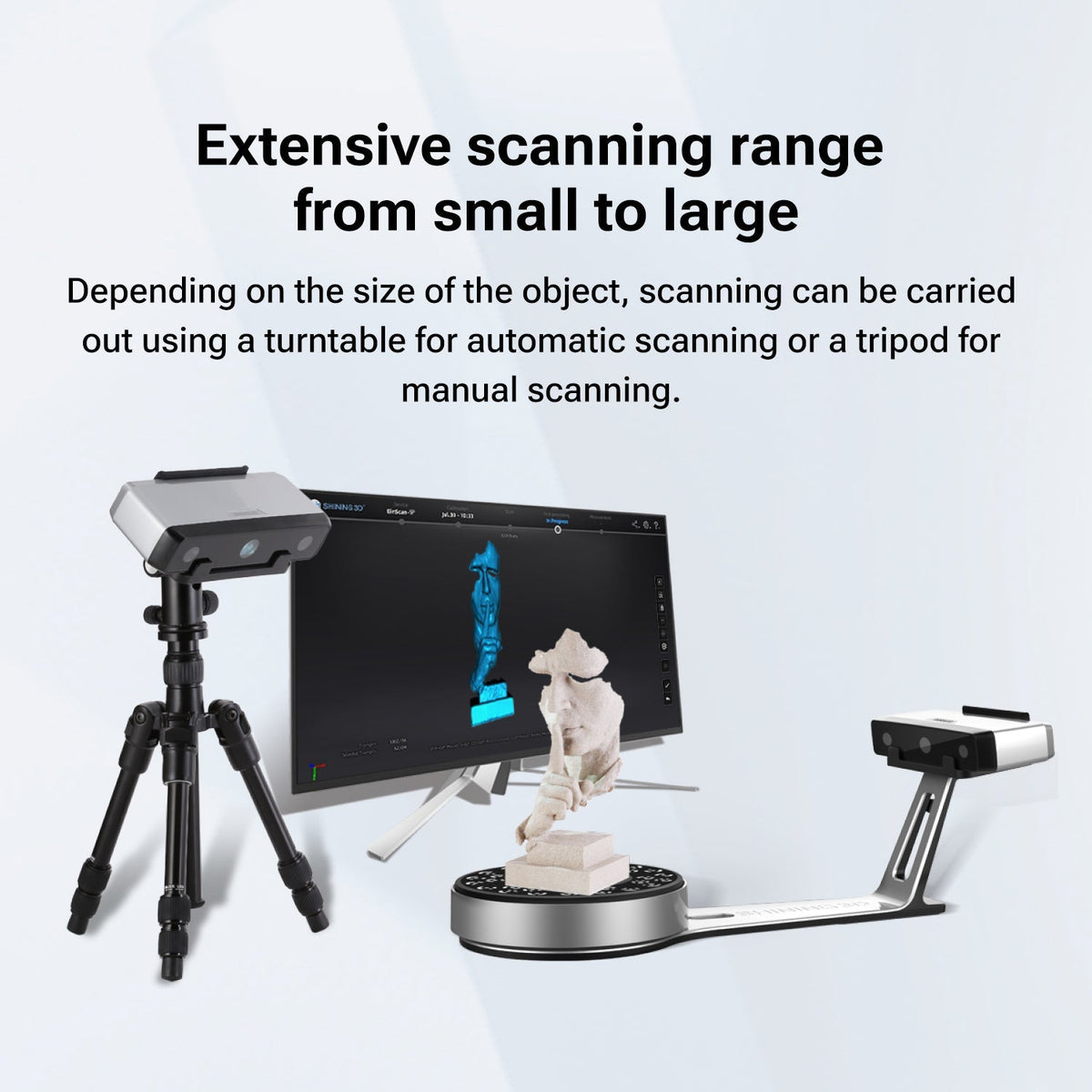

• Scan larger subjects using the fixed scanning setup and tripod
• Capture color texture along with 3D geometry
• Choose from multiple alignment methods for different scanning applications
• Process and prepare scan data with EXScan S software

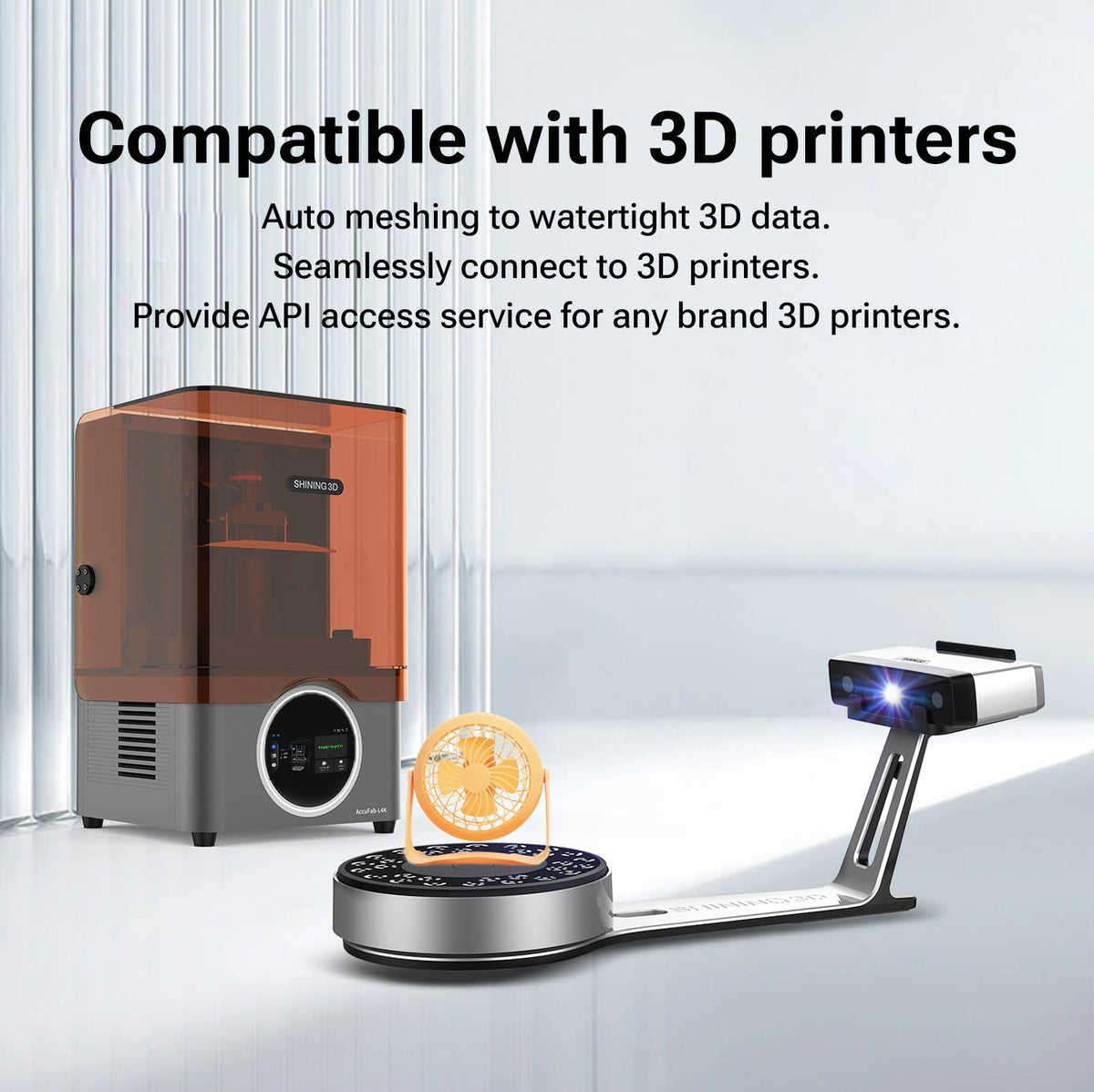

• Export models in common formats including STL, OBJ, PLY, ASC, and 3MF

Product Details

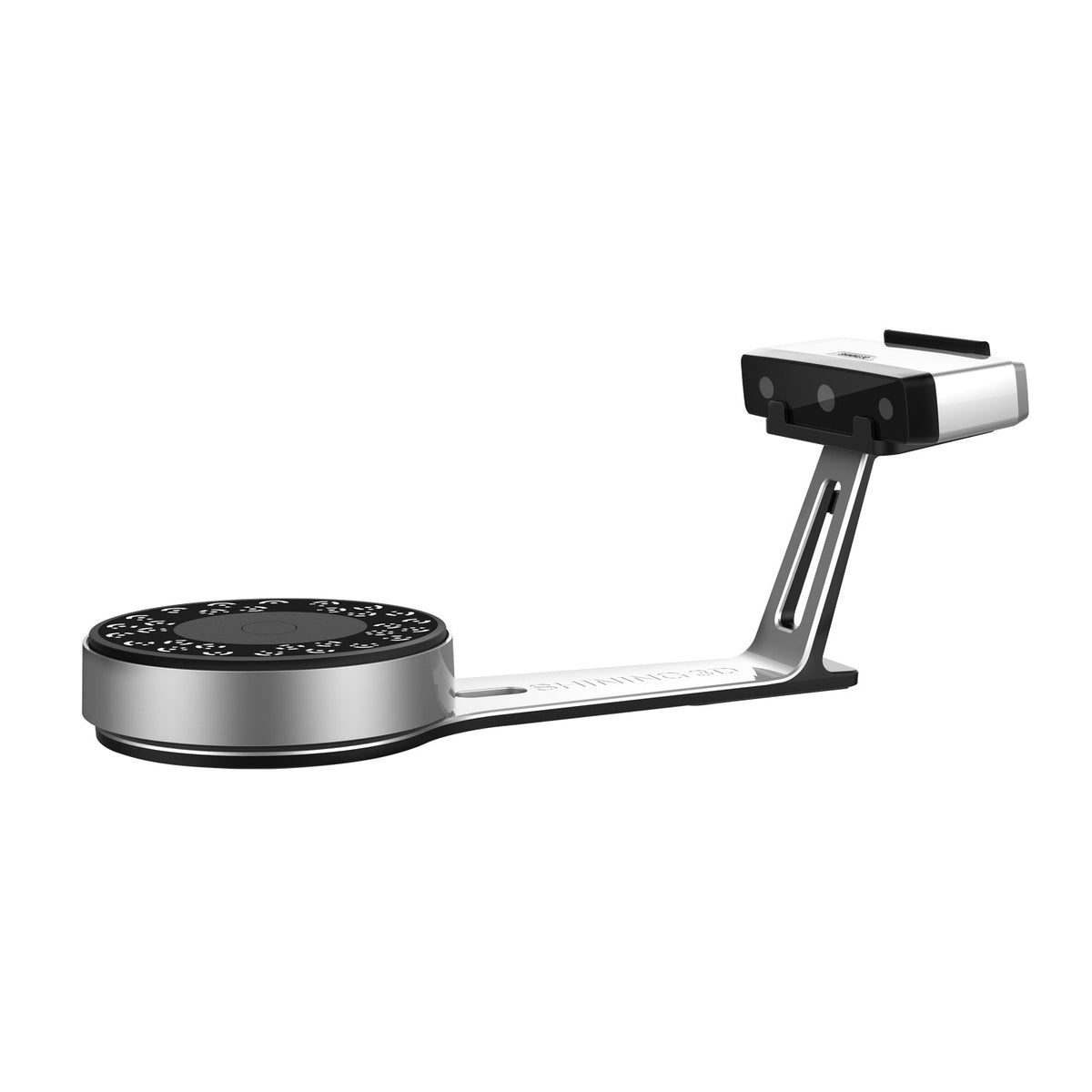

• Scanner Type: Desktop 3D scanner
• Scanning Technology: Structured light
• Light Source: White LED
• Scanning Accuracy: Up to 0.002 in

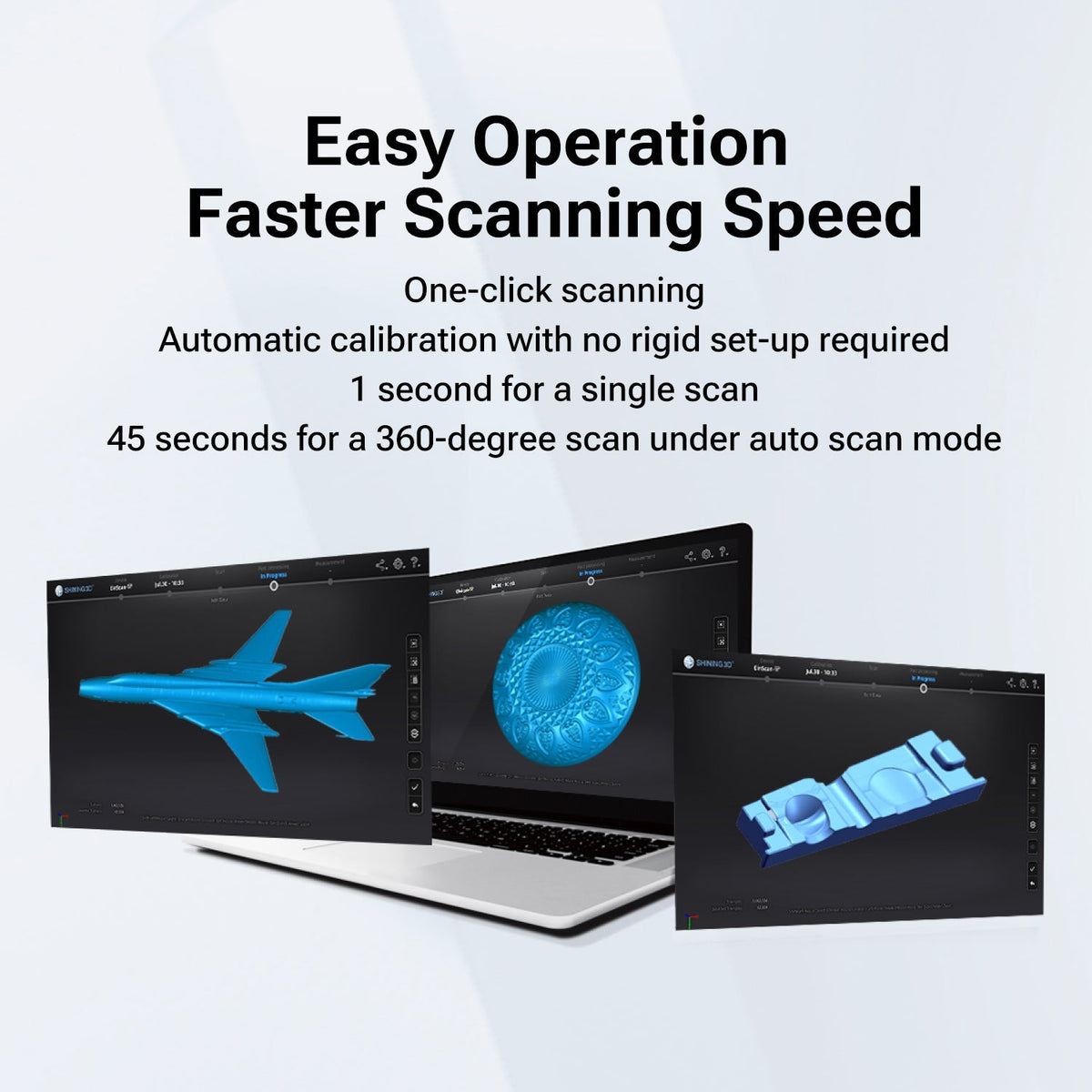

• Single Scan Speed: Less than 1 second
• 360° Turntable Scan: Less than 45 seconds
• Point Distance: 0.007–0.008 in
• Minimum Scan Volume: 1.2 × 1.2 × 1.2 in
• Maximum Automatic Scan Volume: 7.9 × 7.9 × 7.9 in
• Maximum Fixed Scan Volume: Up to 47.2 × 47.2 × 47.2 in
• Single Capture Range: 7.9 × 5.9 in
• Working Distance: 11.4–18.9 in
• Camera Resolution: 1.3 MP
• Texture Scanning: Yes
• Alignment Modes: Turntable, feature, markers, manual, and coded targets
• Output Formats: OBJ, STL, ASC, PLY, and 3MF
• Connectivity: USB 2.0 / USB 3.0
• Turntable Capacity: Up to 11 lb
• Scanner Weight: Approximately 5.5 lb
• Power Consumption: 40 W

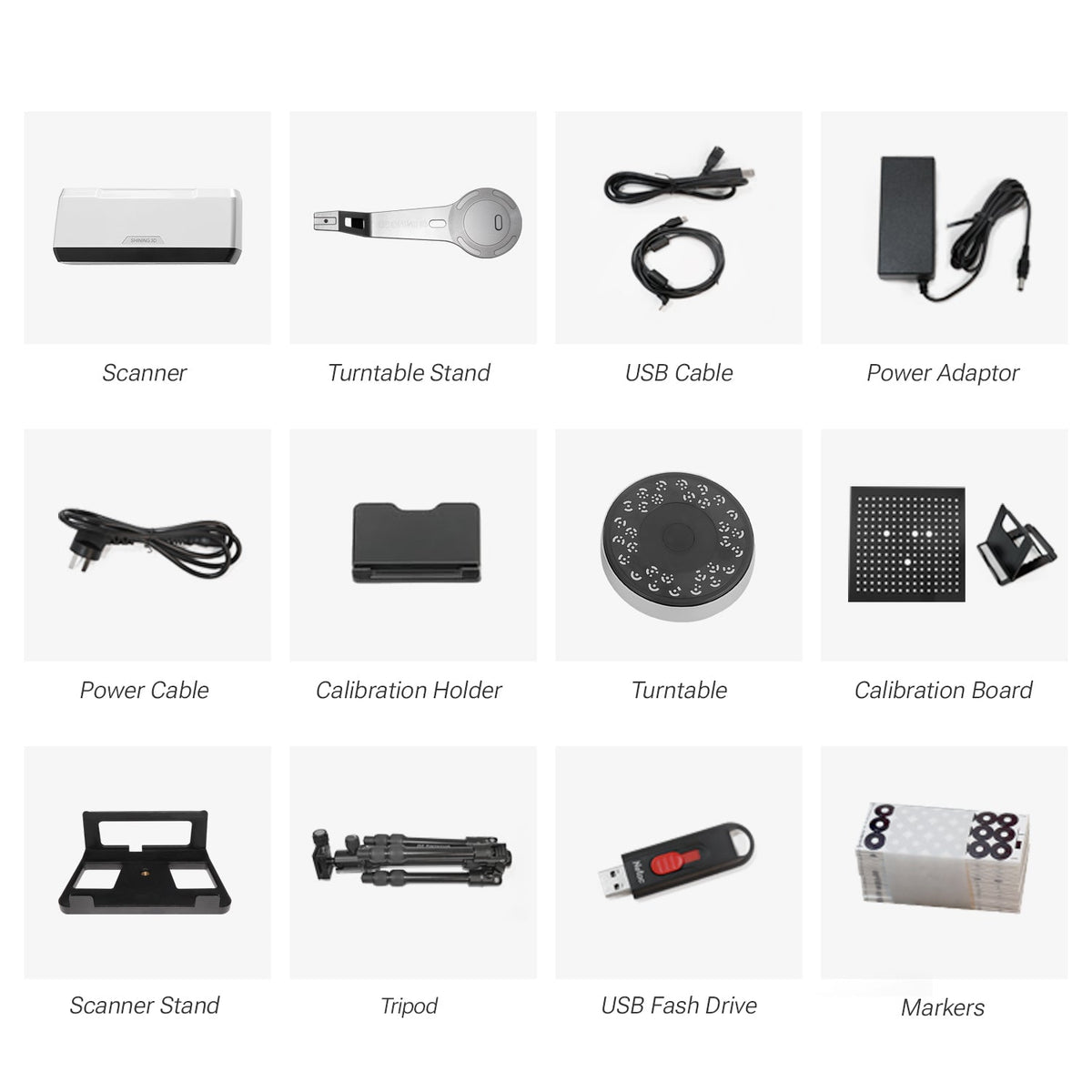

What's Included

• EinScan SP V2 3D scanner
• Turntable
• Turntable stand
• Scanner stand
• Tripod
• Calibration board and holder
• Calibration holder
• USB cable
• Power adapter
• Power cable

Software

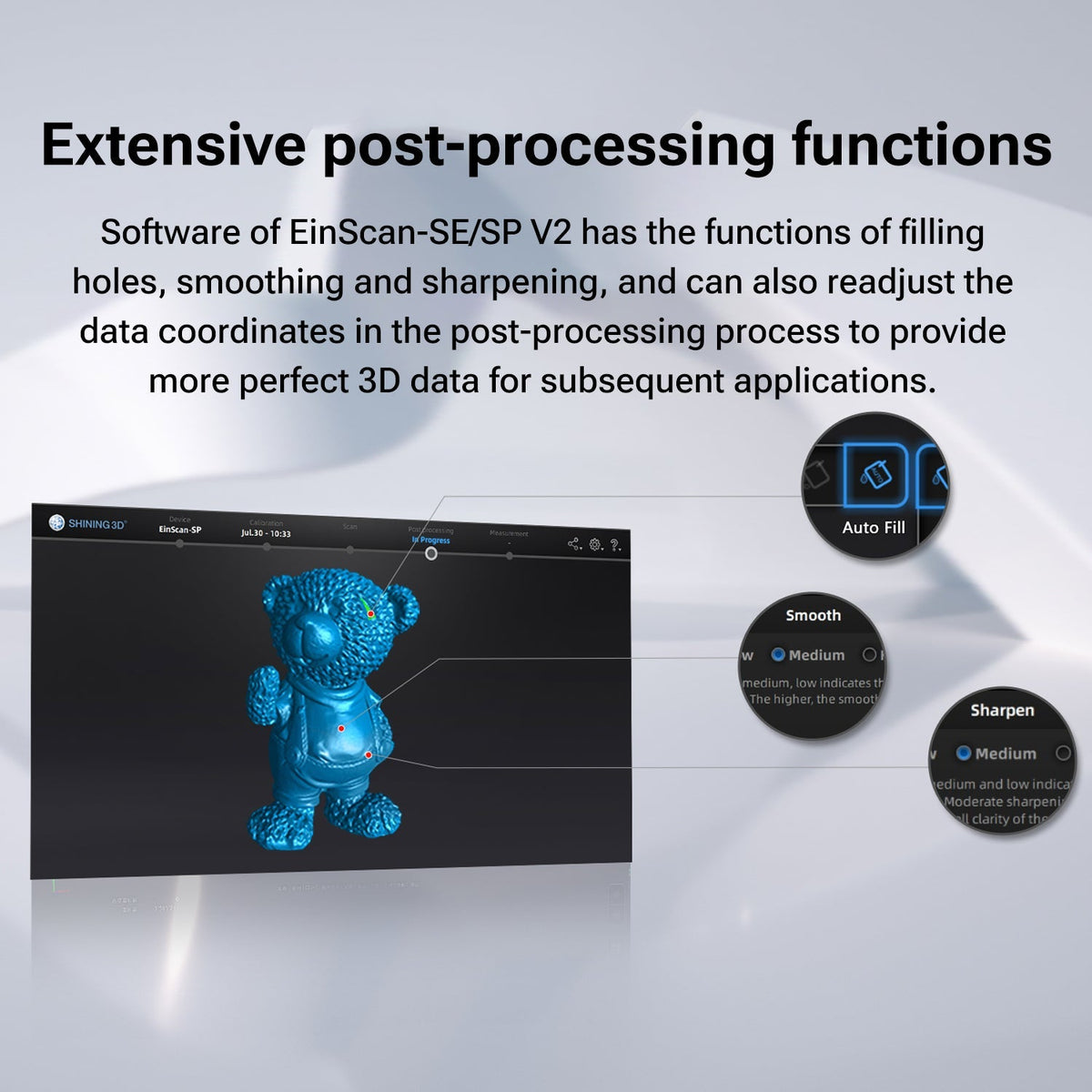

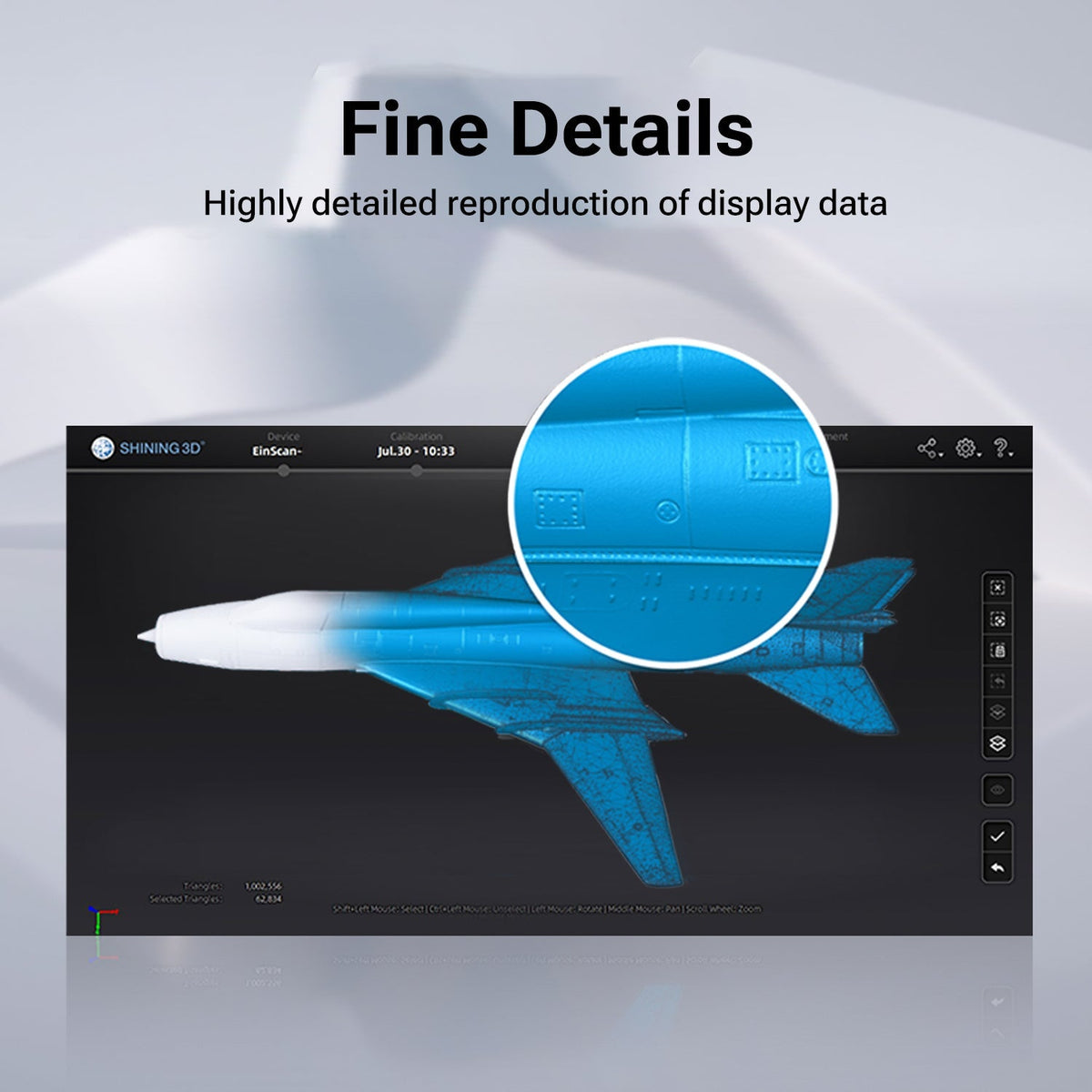

The EinScan SP V2 works with EXScan S software for scanning and processing 3D data. Software features include automatic mesh generation, hole filling, smoothing, sharpening, coordinate adjustment, data alignment, background cutting, and 3D scan preparation.

Computer Requirements

Minimum configuration

• 64-bit Windows operating system
• Intel Core i5-class dual-core processor or better
• More than 8 GB RAM
• NVIDIA graphics card
• More than 1 GB graphics memory
• USB 2.0 or USB 3.0 connection

Recommended configuration

• 16 GB RAM or more
• NVIDIA GTX 660 or better
• More than 2 GB graphics memory
• Intel Core i5-class processor or better
• Discrete graphics card

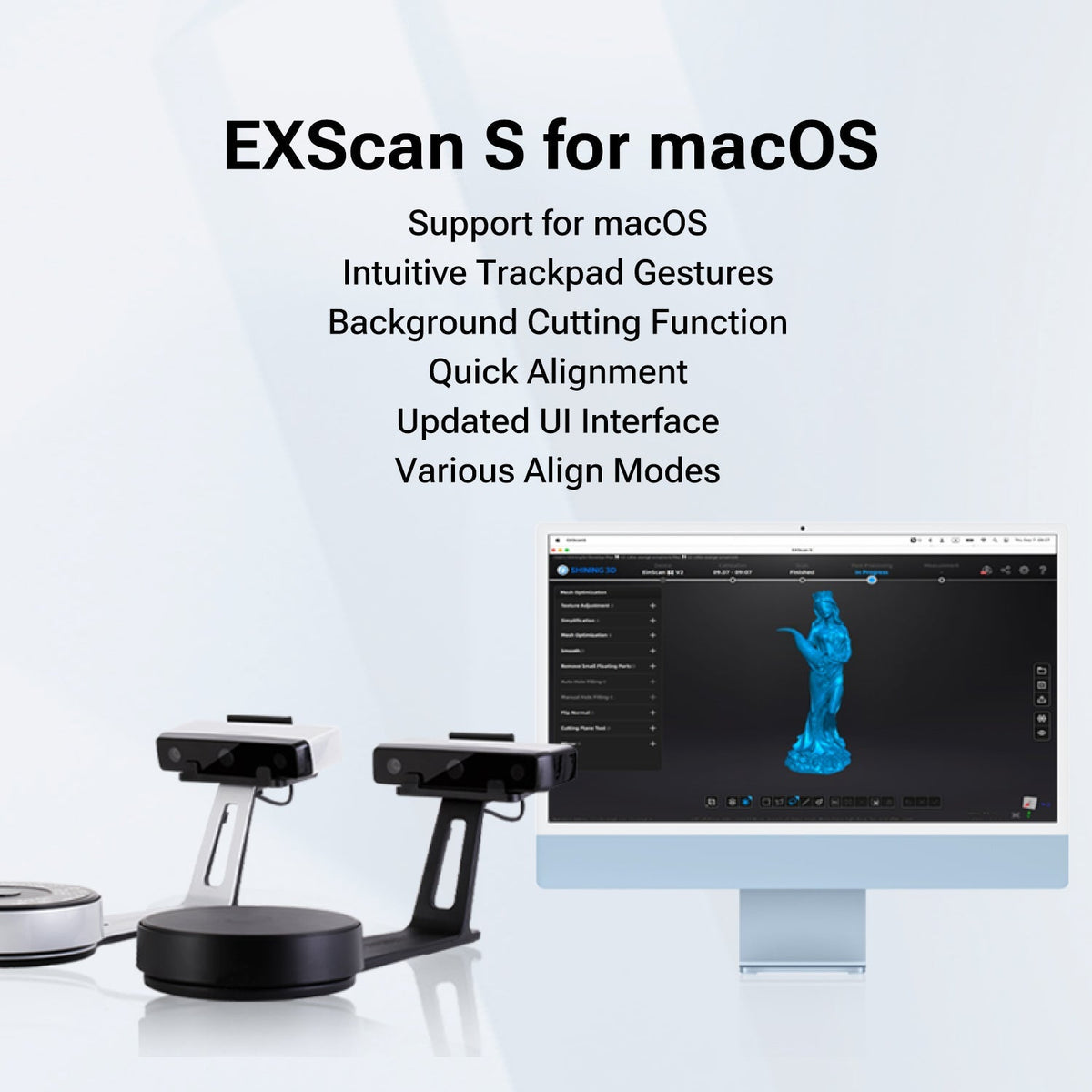

EXScan S also supports macOS. Current software and hardware requirements should be verified before purchase.
