Start with the application rather than the equipment. Identify what you want to print or scan, the typical object size, the level of detail or dimensional accuracy required, the materials involved, your expected workload, available workspace, and the software you plan to use. Then compare only the specifications that affect those requirements. This makes it easier to distinguish genuinely useful capabilities from features that may add cost without improving your particular workflow.

Start with what you plan to make. FDM printers are commonly used for prototypes, models, functional parts, fixtures, educational projects, and general-purpose printing. Resin-based printers can be appropriate when fine surface detail and small features are especially important. Specialized systems may be designed around particular materials, industries, or workflows. Compare the printing technology, build volume, material compatibility, resolution, speed, and operating requirements against the projects you actually expect to complete.

FDM printers create objects by depositing layers of melted filament such as PLA, PETG, ABS, or other compatible materials. They are widely used for prototypes, functional parts, models, and general-purpose printing. Resin printers use liquid photopolymer resin that is selectively cured by light and can produce very fine details and smooth surfaces. Resin printing also involves different handling, cleaning, curing, and workspace requirements, so the best technology depends on the objects you want to produce and how you plan to work.

A multicolor or multi-material system can print with more than one filament color or, when supported by the equipment, different compatible materials within a project. This can be useful for decorative models, prototypes with color-coded features, signage, educational projects, and more complex designs. Capabilities vary by system, so check how many materials or colors are supported, how material changes are handled, and which filament combinations the manufacturer approves.

Build volume determines the maximum physical space available for printing an object. If you primarily create small models or components, a large build area may provide little practical benefit. Larger prototypes and parts may require a larger printer or need to be divided into sections for assembly. Compare the dimensions of the objects you expect to print with the usable build volume rather than choosing the largest machine simply because it offers more space.

Layer height describes the thickness of each deposited layer in many 3D printing processes. Smaller layer heights can produce finer vertical detail and smoother-looking surfaces, but they can also increase printing time. Resolution can be defined differently depending on the printing technology, so specifications should be compared within the context of the particular printer and process rather than relying on a single resolution number.

Print speed can matter when producing large parts, multiple prototypes, or frequent prints, but maximum advertised speed does not tell the entire story. Print quality, material, layer height, geometry, acceleration, cooling, and printer settings can all affect actual production time. For many buyers, consistent output at an appropriate quality level is more important than the highest stated maximum speed.

The right material depends on what the finished object needs to do. Common filaments can include PLA, PETG, ABS, TPU, and other specialized materials, while compatible options vary by printer. Some materials emphasize ease of printing, while others may be selected for flexibility, temperature resistance, mechanical properties, or other application-specific characteristics. Check the printer manufacturer's supported materials and operating requirements before choosing a machine around a particular filament.

An enclosure can help create a more controlled printing environment and may be useful or required for certain materials and applications. It can also provide physical separation from moving and heated components. Whether you need one depends on the materials you intend to print, the printer's design, your workspace, and the manufacturer's operating recommendations. An enclosure alone does not make every material suitable for every indoor environment.

Depending on the model, useful convenience features can include automatic or assisted bed leveling, filament detection, touchscreen controls, built-in cameras, network connectivity, automated calibration, enclosed construction, and multi-material handling. These features can reduce repetitive setup tasks, but they do not eliminate the need to understand materials, slicing, print settings, and basic maintenance.

Most 3D printing workflows use slicing software to convert a digital 3D model into instructions the printer can follow. Some manufacturers provide their own software, while certain printers support third-party applications and common file formats. If you plan to design your own objects, you may also need CAD or 3D modeling software. Check software, file-format, operating-system, and hardware compatibility before purchasing.

A 3D scanner captures information about the shape and surface of a physical object and converts that information into digital 3D data. Depending on the scanner and software, that data can be used for reverse engineering, product development, digital archiving, inspection, design reference, visualization, reproduction, or preparing models for further digital work. The appropriate scanner depends heavily on the size, shape, surface, and level of detail of the objects you need to capture.

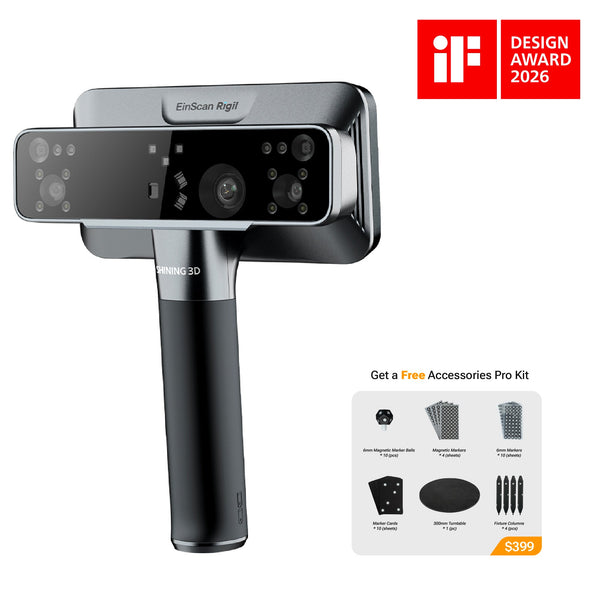

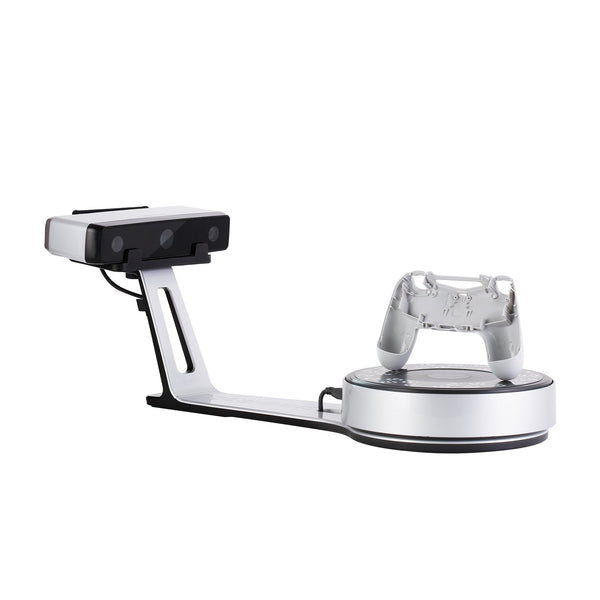

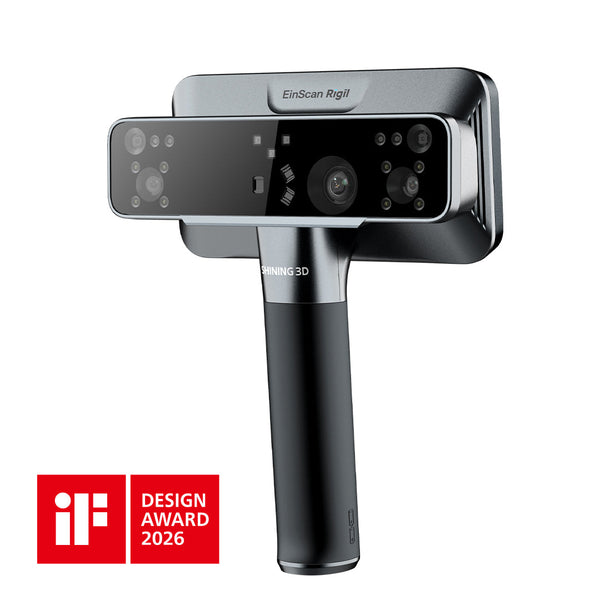

Handheld scanners are designed to be moved around an object or working area, making them useful for objects that cannot easily be positioned on a desktop scanning system. Desktop scanners typically operate within a more controlled scanning area and can be well suited to smaller objects. Neither design is automatically more accurate; accuracy, resolution, working distance, tracking technology, calibration, and the intended object size should all be considered.

Accuracy generally describes how closely captured measurements correspond to the actual dimensions or geometry of the object. Resolution generally relates to the level of detail the scanner can distinguish or represent. A scanner can therefore have specifications for both accuracy and resolution, and they should not be treated as interchangeable. For dimensional or professional applications, review how the manufacturer defines and measures each specification.

That depends on what you plan to do with the scan. Capturing an object for visualization or creative modeling may have different requirements than reverse engineering, dimensional inspection, fitting replacement components, or other precision-oriented work. Higher stated accuracy can be valuable for demanding applications, but it may also come with different equipment, calibration, environmental, and workflow requirements. Match the scanner's documented accuracy to the tolerances your application actually requires.

Yes. Scanners are often designed around particular working distances, fields of view, object sizes, and levels of detail. A scanner intended for small detailed components may not be the most practical choice for furniture, equipment, vehicles, or other large objects, while a system optimized for larger objects may not capture tiny features at the resolution you need. Check the manufacturer's recommended scanning range and object-size capabilities.

No. Object geometry, surface texture, reflectivity, transparency, color, movement, and lighting can all affect scanning performance. Highly reflective, transparent, very dark, or featureless surfaces can be more challenging for some scanning technologies. Depending on the equipment and application, changes to lighting, positioning, scanning technique, or surface preparation may be needed. Always check the scanner manufacturer's recommendations for difficult surfaces.

Often, but scanning and printing are separate parts of the workflow. A scanner can capture the geometry of a physical object, but the resulting digital model may require alignment, cleanup, hole filling, mesh repair, scaling, redesign, or other processing before it is ready to print. A 3D scanner should therefore be viewed as a way to capture physical geometry rather than as an automatic copy-and-print system.

Not necessarily. A 3D printer can produce objects from existing or newly designed digital models without a scanner. A scanner can digitize physical objects without a 3D printer. Using both can be valuable when your workflow involves capturing an existing object, modifying or analyzing the resulting digital model, and then producing a physical version, prototype, fixture, replacement component, or related design.

Requirements vary significantly by printer, scanner, and software. Basic slicing can have different hardware demands from processing detailed scan data or working with complex CAD models. Before buying, check the manufacturer's supported operating systems, processor, memory, graphics, storage, ports, connectivity, and other computer requirements for the specific software you intend to use.

Look beyond the headline specifications and consider the complete workflow. Review build or scanning capacity, supported materials, accuracy or resolution, software compatibility, computer requirements, connectivity, calibration, consumables, replacement components, included accessories, workspace requirements, maintenance, and manufacturer documentation. For business or specialized applications, also consider whether the system fits the file formats, software, materials, tolerances, and processes already used in your workflow.

Not necessarily. A larger build volume, finer resolution, faster advertised speed, or higher scanning accuracy is useful only when your projects require it. Higher specifications can also bring additional cost, processing demands, material requirements, or workflow complexity. Start with the objects you need to create or capture, determine the capabilities those projects require, and then compare systems that meet those requirements.
