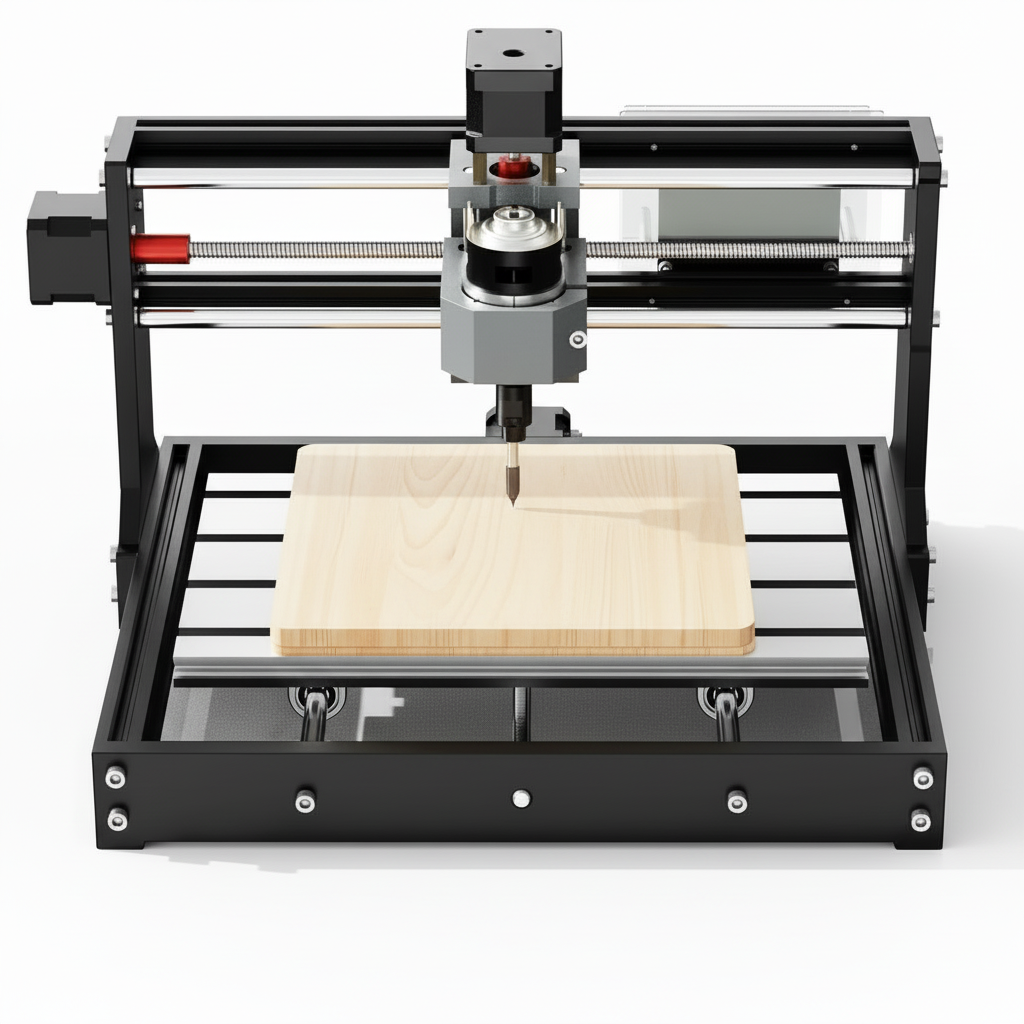

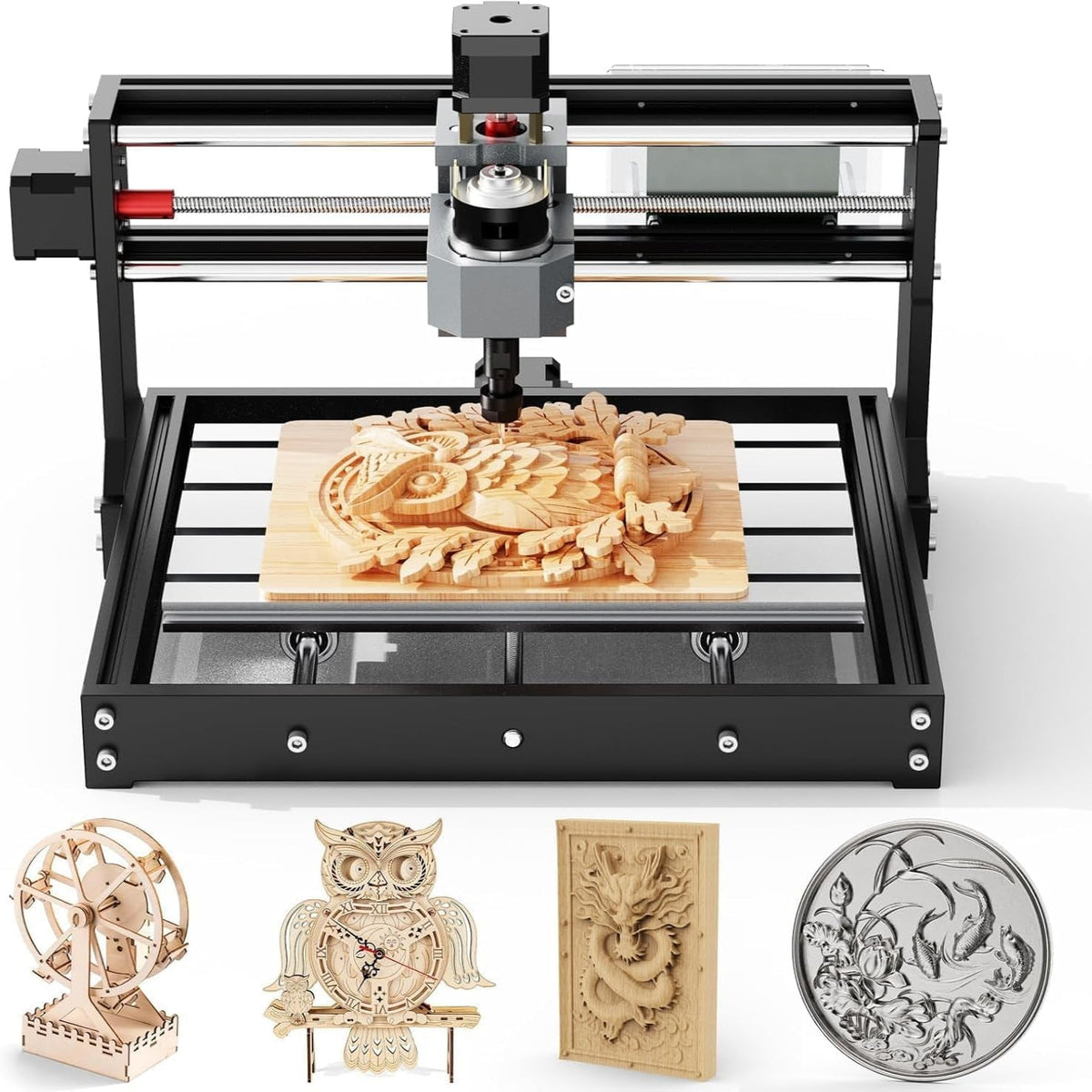

TTC3018 CNC Router Machine 3-Axis Engraving Machine

TTC3018 CNC Router Machine 3-Axis Engraving Machine is a compact desktop engraving and milling machine designed for wood, plastic, acrylic, copper, and aluminum. Powered by a 32-bit STM32 processor with GRBL control, it delivers engraving accuracy of 0.1mm and speeds up to 1500mm/min. The machine features a 775 spindle motor, ER11 collet, USB connectivity, and a 300x180x40mm work area for engraving, prototyping, education, and personal projects.

Specifications

• Model Number: TTC3018

• Part Number: 622100013

• Color: Black

• Item Weight: 15.12 pounds

• Product Dimensions: 16.5 x 13.97 x 11 inches

• Overall Size: 420x355x280mm

• Work Area: 300x180x40mm

• Processor: 32-bit STM32

• Control System: GRBL

• Engraving Accuracy: 0.1mm

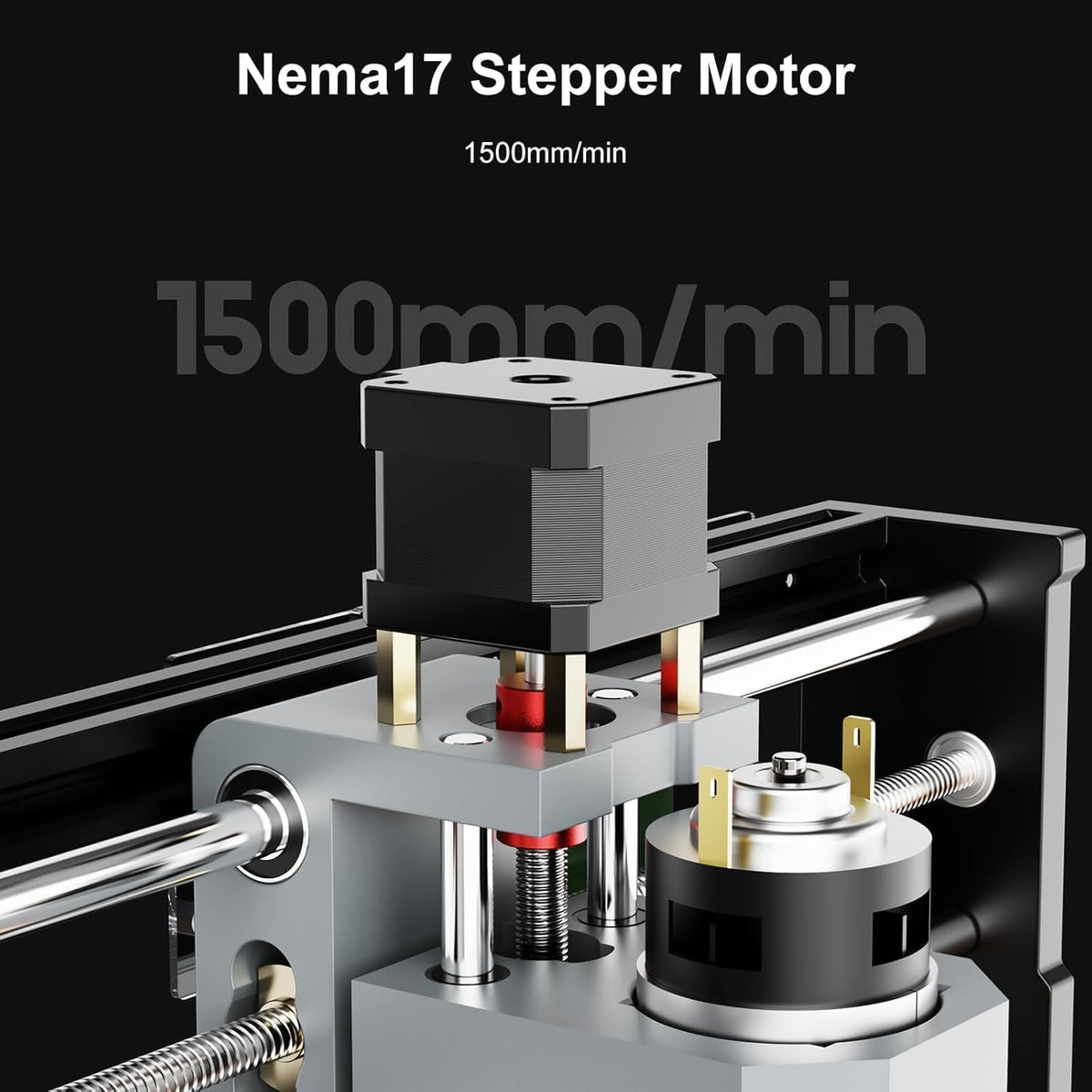

• Maximum Speed: Up to 1500mm/min

• Spindle Motor: 775 spindle

• Spindle Speed: 7000-9000 RPM

• Collet: ER11

• Supported Bit Size: 0.5-7mm

• Connection: USB

• Operating System Support: Windows XP through Win 10

• Compatible Software: Artcam and Fusion360

• Supported Materials: Wood, plastics, acrylic, copper, and aluminum

• Certifications: CE-EMC, CE-LVD, CE-MD, CE-RED, ROHS, FCC-Sdoc, and FCC-ID

Features

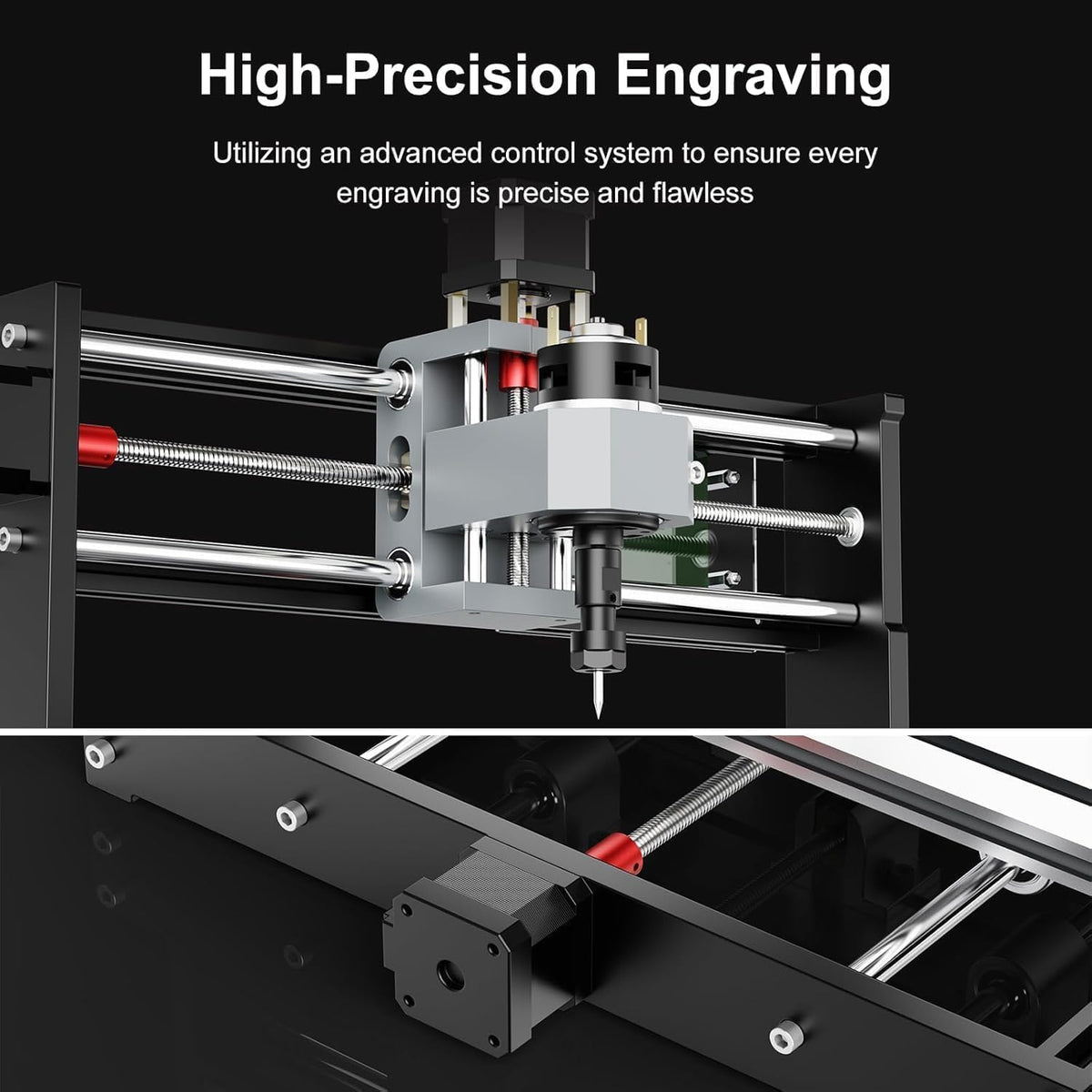

• Precision Engraving: Uses a 32-bit STM32 processor and GRBL control to achieve 0.1mm engraving accuracy and speeds up to 1500mm/min.

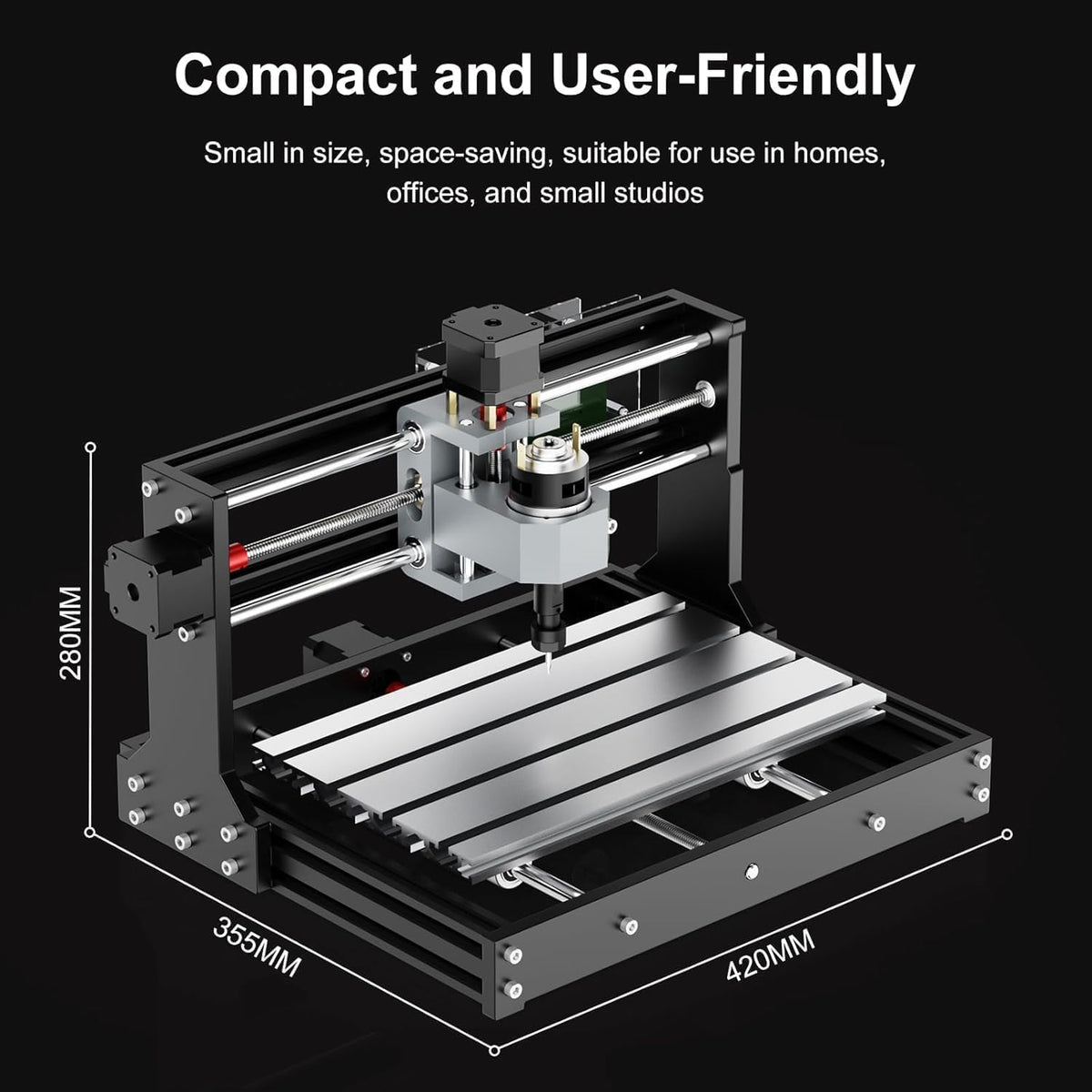

• Compact Desktop Design: Features a 420x355x280mm overall size with a 300x180x40mm working area for desktop use.

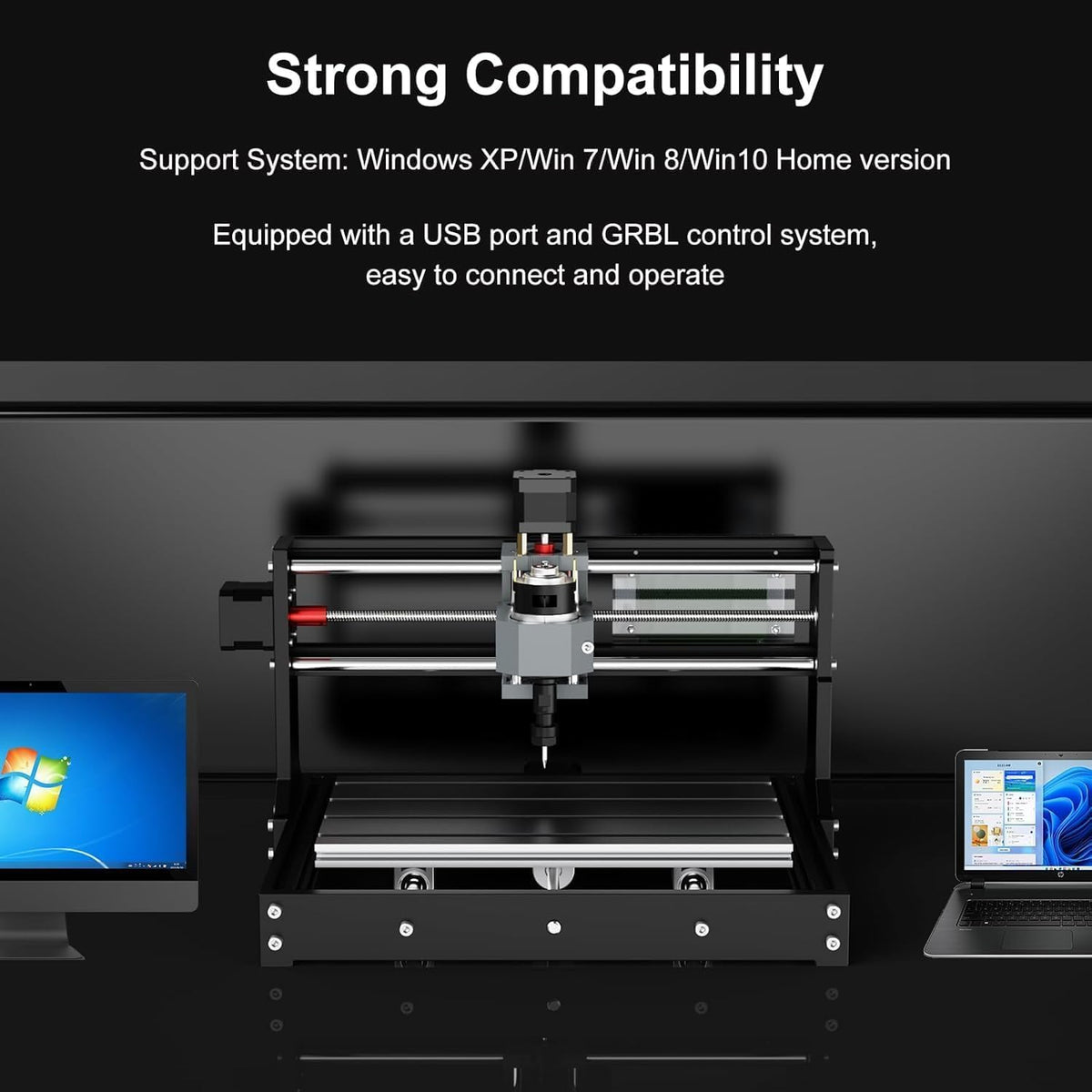

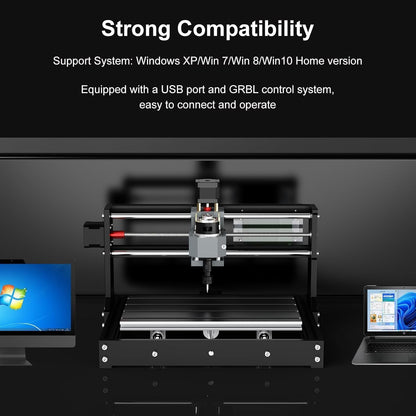

• USB Operation: Operates through a USB connection and supports compatible engraving software.

• Versatile Routing and Milling: Suitable for routing wood and plastics as well as light-duty milling of soft metals including copper and aluminum.

• 775 Spindle Motor: Operates at 7000-9000 RPM and works with an ER11 collet supporting 0.5-7mm bits.

• Pre-Assembled Components: Main components are pre-assembled with clearly labelled cables for straightforward installation.
